grundfos 1" upm3 solar oem circulator pump for hvac solar system 15-75 15/75 130

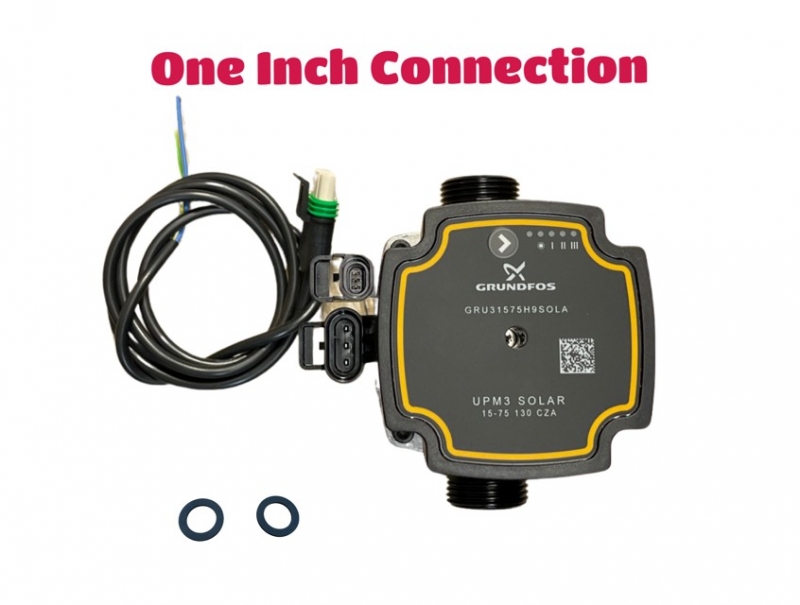

Grundfos 1" UPM3 SOLAR OEM circulator pump for HVAC SOLAR system 15-75 15/75 130
Code: 15-75 15/75 130
£105.00
(Inc £126.00)
Grundfos 1" UPM3 SOLAR OEM circulator pump for HVAC SOLAR system 15-75 15/75 130

UPM3 SOLAR

UPM3 SOLAR is an OEM high efficiency circulator offering flexible solutions for thermal solar systems – no matter if matched flow, constant flow or drainback. It is applicable for solar fluid up to 130° C and designed to work with or without PWM signal, allowing you to upgrade your systems without having to change the controller.

LIQUID:
Pumped liquid:    Water
Liquid temperature range:    2 .. 110 °C
Selected liquid temperature:    60 °C
Density:    983.2 kg/m³

TECHNICAL:
TF class:    110
Approvals:    CE,VDE

MATERIALS:
Pump housing:    Cast iron
Impeller:    PES 30% GF

INSTALLATION:
t max amb:    70 °C
Maximum operating pressure:    10 bar
Port-to-port length:    130 mm

ELECTRICAL DATA:
Power input - P1:    2 .. 45 W
Mains frequency:    50 Hz
Rated voltage:    1 x 230 V
Maximum current consumption:    0.04 .. 0.48 A
Enclosure class (IEC 34-5):    X4D

OTHERS:
Energy (EEI):    0.20
Net weight:    1.76 kg
Gross weight:    2.12 kg
Grundfos 1" UPM3 SOLAR OEM circulator pump for HVAC SOLAR system 15-75 15/75 130

UPM3 SOLAR

UPM3 SOLAR is an OEM high efficiency circulator offering flexible solutions for thermal solar systems – no matter if matched flow, constant flow or drainback. It is applicable for solar fluid up to 130° C and designed to work with or without PWM signal, allowing you to upgrade your systems without having to change the controller.

LIQUID:
Pumped liquid:    Water
Liquid temperature range:    2 .. 110 °C
Selected liquid temperature:    60 °C
Density:    983.2 kg/m³

TECHNICAL:
TF class:    110
Approvals:    CE,VDE

MATERIALS:
Pump housing:    Cast iron
Impeller:    PES 30% GF

INSTALLATION:
t max amb:    70 °C
Maximum operating pressure:    10 bar
Port-to-port length:    130 mm

ELECTRICAL DATA:
Power input - P1:    2 .. 45 W
Mains frequency:    50 Hz
Rated voltage:    1 x 230 V
Maximum current consumption:    0.04 .. 0.48 A
Enclosure class (IEC 34-5):    X4D

OTHERS:
Energy (EEI):    0.20
Net weight:    1.76 kg
Gross weight:    2.12 kg
